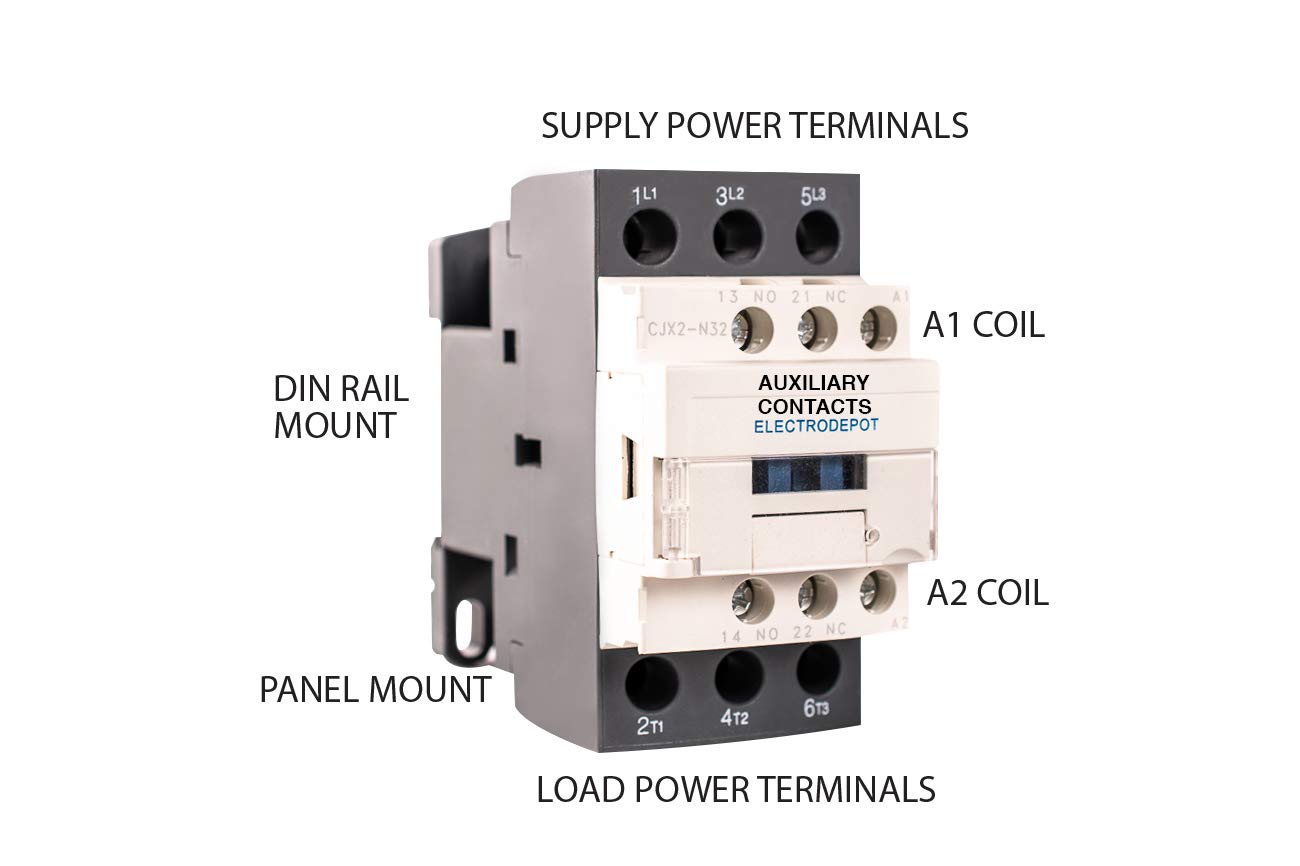

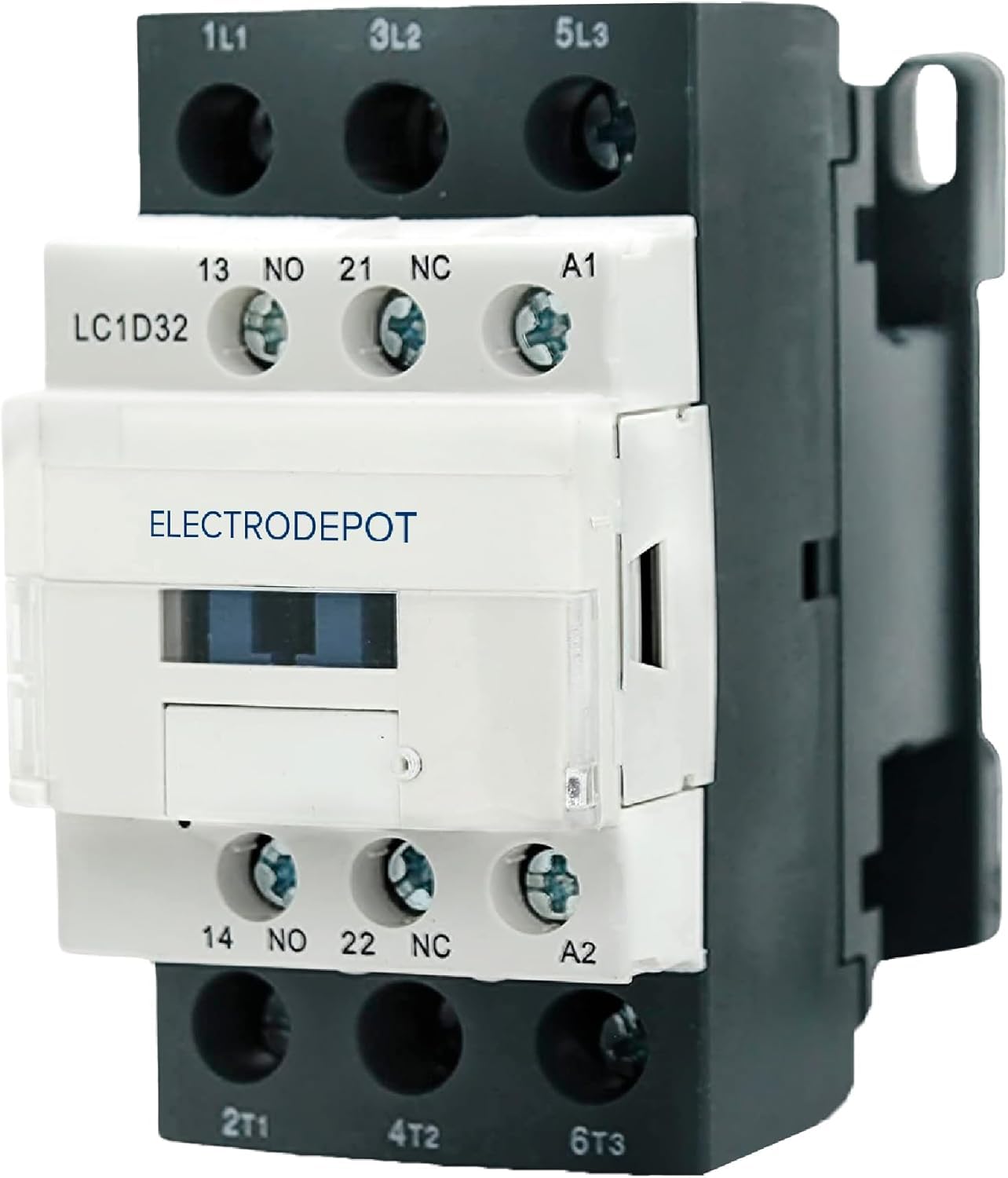

Electrodepot 30 Amp 3 Pole Normally Open IEC 660V Contactor, Auxiliary 1NO-1NC – 110-120VAC Coil, Inductive 32A, Resistive 50A with Mounting Base for DIN Rail (Pack of 2)

Pack of 2 30 Amp 3 Pole Normally Open IEC 660V Contactors for home or industrial uses. Perfectly compatible with DIN rail mounting.It features 1 Normally Open and 1 Normally Closed auxiliary contacts. With applications in lighting, motor and switching.Technical Specifications:– Contactor 660V– Contactor Type IEC– Full Load Amps-Inductive 32– Full Load Amps-Resistive 50– Number of Poles 3– Coil Volts: 120VAC– Hz 50/60– Action: Non-reversing– Enclosure Type Open– Auxiliary Contact Form 1NC/1NO– Coil inrush 70VA, Sealed 7.5VA– 2 HP @ 1 Phase - 120V– 5 HP @ 1 Phase - 230V– 10 HP @ 3 Phase - 208V– 10 HP @ 3 Phase - 230V– 20 HP @ 3 Phase - 480V– 30 HP @ 3 Phase - 575V– Standards CE– Base or DIN 35mm mountWiring:Solid Conductor: 25 mm2 Max torque 0.6 NmStranding Conductor: 16 mm2, Max torque 0.6 NmCompliance:CSA C22.2 No. 14, EN 60947-4-1, EN 60947-5-1, IEC 947-2, IEC 60947-4-1, IEC 60947-5-1, UL 508

• INDUSTRIAL QUALITY COMPONENTS – Pack of 2 30Amp 3 Pole Normally Open (NO) Ballast Contactors for home and industrial uses, with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts. Compatible with 35mm DIN rails. Comply with IEC/EN standards for c
• APPLICATIONS – Lighting, motor or switching. AC-1 for resistance furnaces, incandescent lamps or electric heaters; and AC-3 for air conditioners, compressors or fans. Compatible with 35mm DIN rails. Complies with IEC/EN standards for consistent and reliable installation
• FULL AMP LOAD – Inductive/Motor Load: 32 Amp. Resistive/Incandescent Load: 50 Amp. Compatible with 15 Amp, 20 Amp and 30 Amp loads
• COIL VOLTAGE AND LOAD – Voltage: AC 110V/120V, 50/60Hz. Load: 70VA Inrush and 7.5VA Sealed. Power Lug Terminal Capacity AWG # 5
• DIMENSIONS (approx.) – 56.4 x 88.9 x 88.9 mm / 2.22'' x 3.50'' x 3.50'' (Width x Height x Depth)
