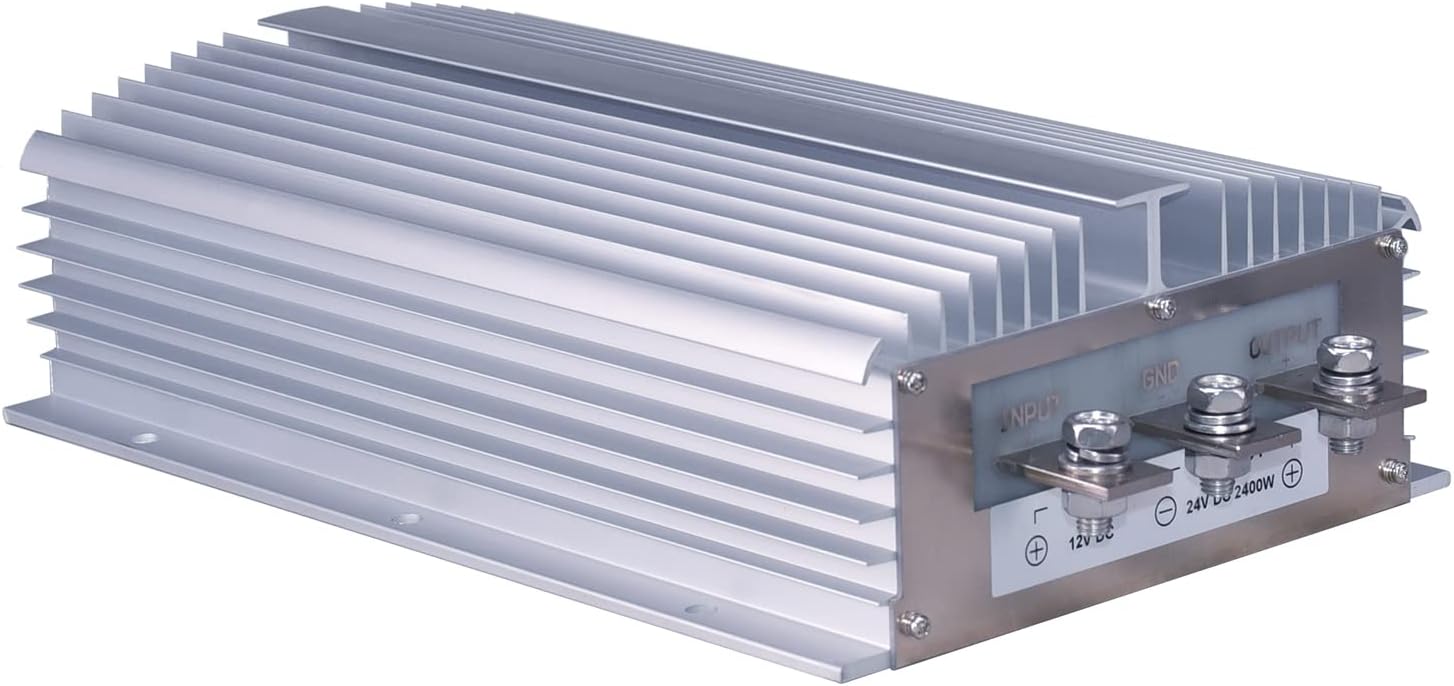

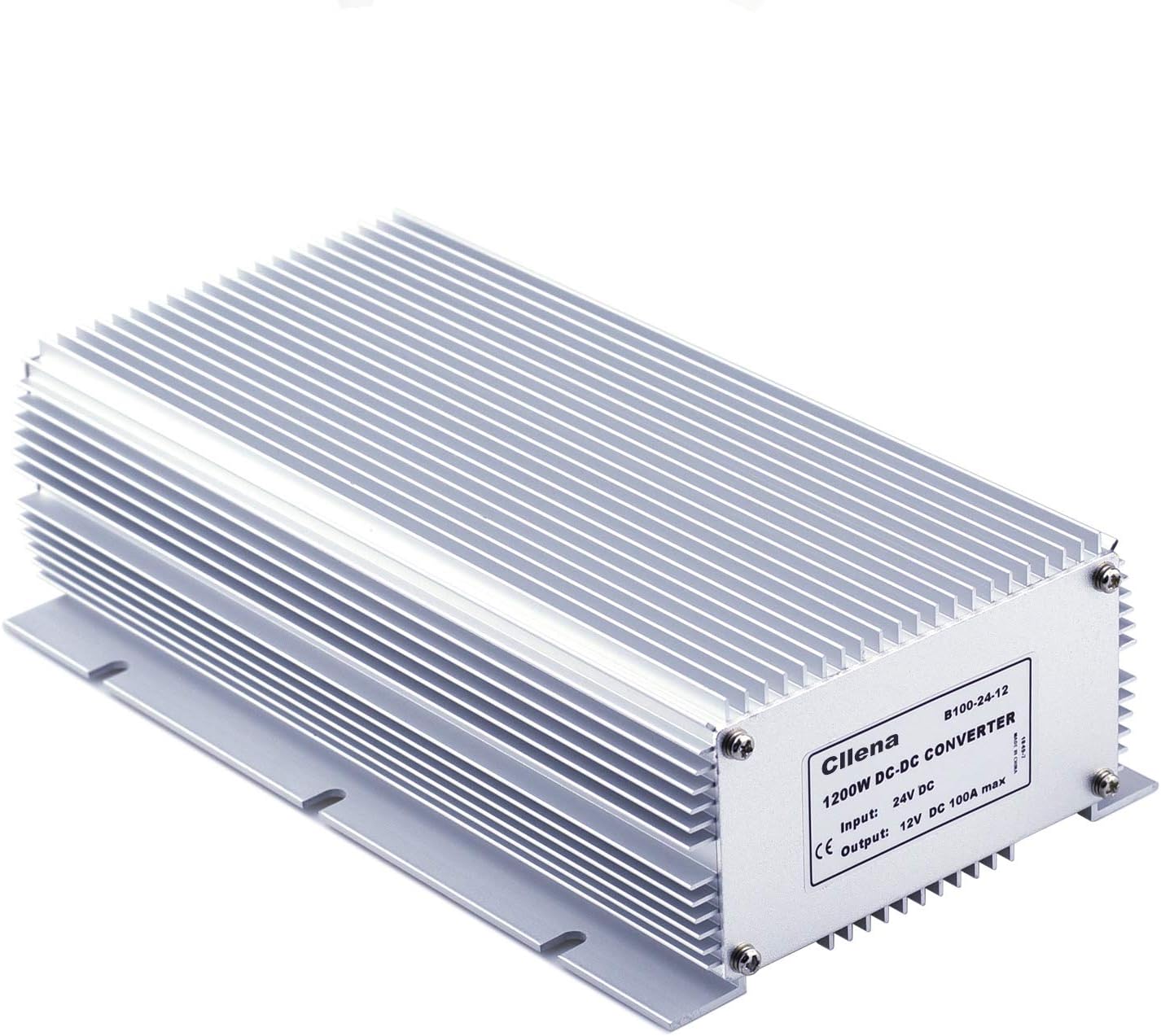

Cllena DC 24V to 12V 100A 1200W Waterproof Buck Transformer Power Supply
Product details
| Management number | 209128178 | Release Date | 2026/03/29 | List Price | $60.00 | Model Number | 209128178 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

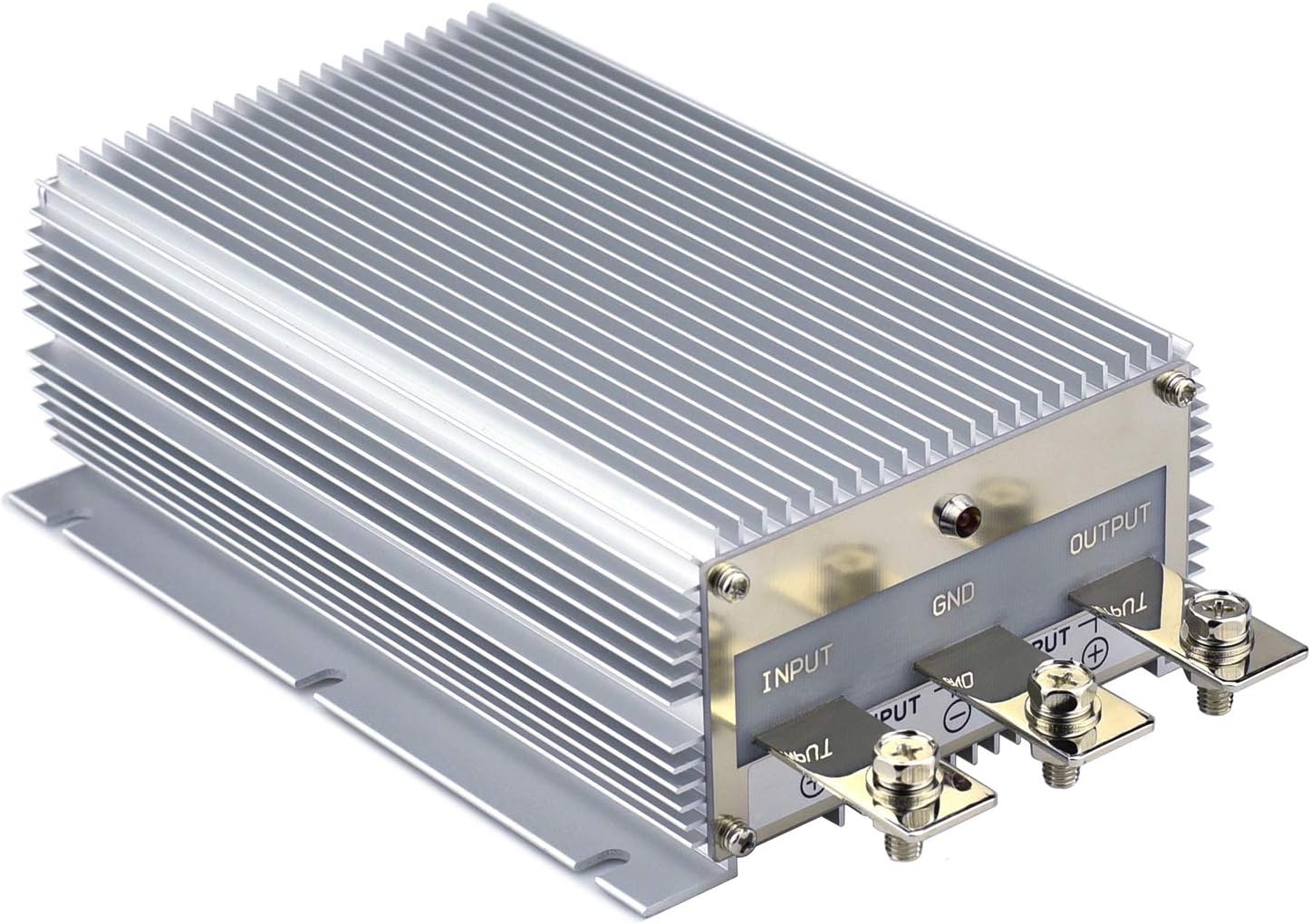

Wiring: OUTPUT+ to LOAD+, OUTPUT- to LOAD-; INPUT+ to BAT+, INPUT- to BAT- Note: * Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine. * Never charge the battery. Keep good air convection. * Never reverse the polarity. * Use the enough big cable to avoid the voltage drop. Application: 24V DC battery as input power to 12V DC appliances as output load. Specifications: Input Rated Voltage: 24V DC Input Voltage Range: 18-35V DC Output voltage: DC12V 100A Output Rated Power: 1200W Efficiency: 97% (half load); 95% (full load) No-load current: <0.1V Ripple: 200mVp Line Regulation: ±0.2% Load Regulation: ±0.2% Voltage Accuracy: ±1.5% Enclosures: IP68 Case Operating Temperature: -40~85°C Weight: 2200g Features: 1. 100% full power and stable current output, non-isolated module. 2. Industry grade DC 24V to DC 12V step-down converter, efficiency up to 95%. 3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection. 4. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating. 5. Certificates: CE/RoHS, 1 year warranty, lifetime up to 100,000 hours. Package included: 1 x DC 24-12V 100A Voltage Converter Questions: How to choose the correct current for loads? For example, if the max current of your load device is 10A, then choose 10A/0.8=12.5A at least for resistive loads according to international standard. If the load device is motor or compressor, then you may choose 10A/0.5=20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.
- Input voltage range: DC 18-35V; Output voltage: DC 12V(non-adjustable); Output current: 100A; Output power 1200W.
- High conversion efficiency: Synchronization rectification technology-multiple intelligent protection function with high conversion efficiency and stability. The conversion efficiency may reach 95%.
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Aluminum shell and silicone sealed design: Waterproof, Anti-shock, Anti-humidity and Dust-proof, more durable.
- Wide application: Large trucks, taxi radio, emu, car audio, LCD TV, advertising screen, LED strip lights, monitoring system, motor, electronic systems and DIY etc.
| Brand | Cllena |
|---|---|
| Color | Metallic |
| Plug Type | Barrel Connector |
| Item Weight | 4.9 Pounds |
| Manufacturer | Cllena |
| Model Number | DC2412-100 |
| Power Source | Battery Powered |
| Input Voltage | 24 Volts |
| Output Voltage | 12 Volts |
| Mfr Part Number | DC2412-100 |
| Number of Outlets | 1 |
